원래 장소:
중국
브랜드 이름:
OEM
인증:
Meet CE
모델 번호:
4.8V nimh 2500mah AA 배터리
4*AA cell 2500mah 4.8volt nimh battery pack AA2500mah 4.8V rechargeable battery
2500mah 4.8v NiMH Flat Battery 4.8V NiMH Standard Battery Pack
OEM Accepted 4.8 Volt Nimh Battery Pack 2500mah NI-MH Rechargeable Battery AA size 4.8V 2500Mah
This is a rechargeable 4.8 V NiMH battery pack with a capacity of 2500 mAh.
Batterypack rechargeable NiMH 4.8V 2500mAh AA size battery
High-capacity battery pack NIMH battery for powering electronic devices.
AA Rechargeable battery pack NiMh 2500mah 4.8 Volt ni/mh batteries
Battery type: Dry cell rechargable battery
Material: Nickel metal hydride nimh battery
Voltage: single cell 1.2V, ,this is battery pack 4.8V
Combination: 3S1P
Battery size: AA
Battery capacity: 2500mah
Terminals depends on customer needed
nimh battery 2500mah 4.8V battery nimh pack data sheet:
| Item | Specification |
Conditions |
Standard charge |
250 mA(0.1C) | Ta=20±5ºC |
| 16 hrs | ||
Standard discharge |
500 mA (0.2C) | Ta=0-40ºC Humidity:65±20% cell cutoff:4.0V/pack |
Rapid Charge |
2.4 H | Cut-off condition: -△V=20mV/pack dT/dt=0.8~1.0ºC/min |
Trickle Charge |
0.02C-0.05C | Ta=0-40ºC |
| Storage temperature | -20ºC~30 within 1 year -20ºC~40 within 6 month -20ºC~50 within 1 month -20ºC~55 within 1 week |
Relative humidity:65±20% |
| Weight | Approx 120 | |
Nominal Capacity |
2500 mAh | |
Voltage |
4.8 volt | . 4S1P battery pack |
| Open circuit voltage | 5V | Within 1 hr after standard charge |
| Charge retention | ≥1750 (70%) |
Standard charge Storage: 28 days at Ambient Temperature or 7 days at 45ºC Standard discharge |
Cycles Test |
≥ 300 Cycles | IEC 61951-2(2017)/7.5.1.2 |

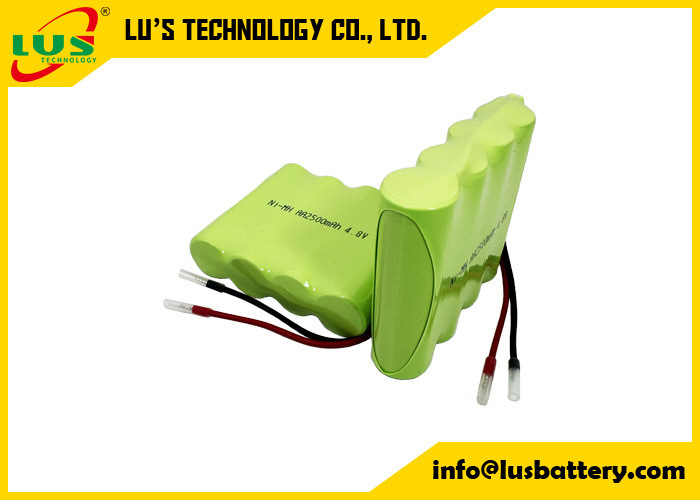

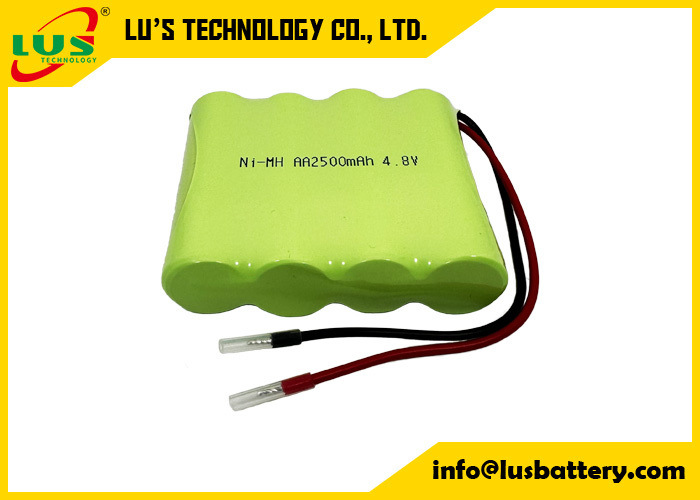

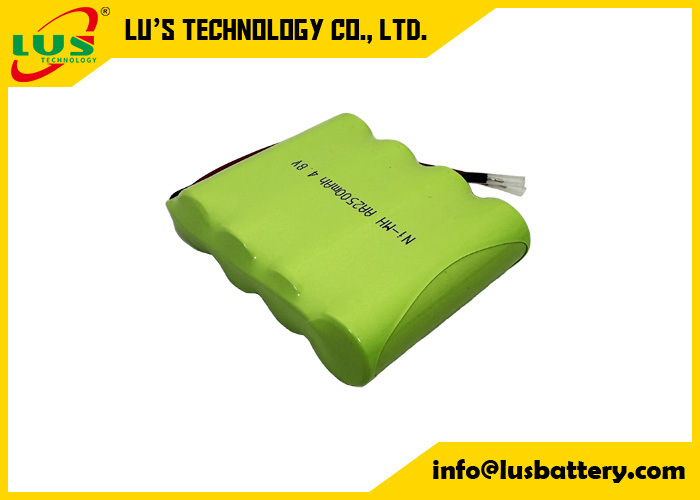

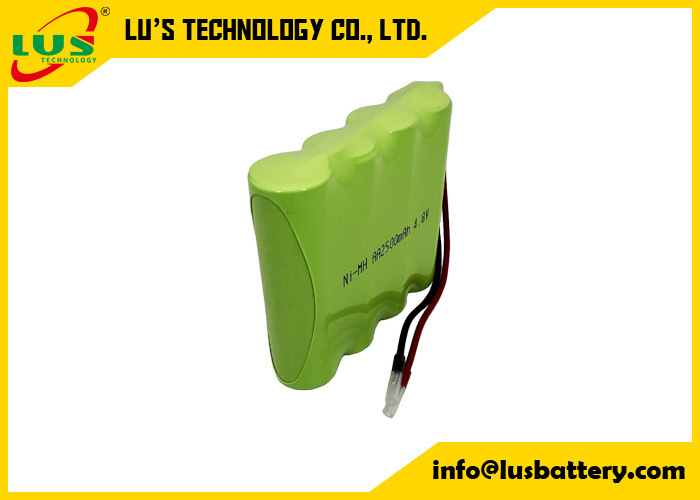

2500mah NIMH Battery 4.8V nimh battery picture:
Data Of Battery Pack:
The data of battery pack, including voltage and weight, is almost equivalent to the multiple
numbers of the relevant single cells.
Example: Battery pack consisting three single cells
Nominal voltage of single cell = 1.2V
Nominal voltage of battery pack = 1.2V×4 = 4.8V
NIMH Application:
MP3, Walkman, E-toys, E-tooth brusher, Brushes shaver, LED torch, Alarm system, Fire
alarm, Mining light, Sex toys, Adult toys.
NIMH Features:
1) High energy density
2) Low self-discharge
3) Long service life
4) Chargeable up to 500 or 1000 times
5) Excellent performance of high rate charge and discharge
6) Low internal resistance
NIMH Battery 1.2V hot model:
| NI-MH rechargeable battery | ||||
| Type | Voltage(V) | Capacity(mAh) | High(mm) | Diameter(mm) |
| AAA | 1.2 | 600 | 44.0±0.5 | 10.0±0.2 |
| AAA | 1.2 | 600 | 43.5±0.5 | 10.0±0.2 |
| AAA | 1.2 | 650 | 44.0±0.5 | 10.0±0.2 |
| AAA | 1.2 | 650 | 43.5±0.5 | 10.0±0.2 |
| AAA | 1.2 | 700 | 44.0±0.5 | 10.0±0.2 |
| AAA | 1.2 | 700 | 43.5±0.5 | 10.0±0.2 |
| AAA | 1.2 | 800 | 44.0±0.5 | 10.1±0.2 |
| AAA | 1.2 | 800 | 43.5±0.5 | 10.0±0.2 |
| AAA | 1.2 | 850 | 44.0±0.5 | 10.1±0.2 |
| AAA | 1.2 | 850 | 43.5±0.5 | 10.0±0.2 |
| 1/4AAA | 1.2 | 70 | 10.5±0.5 | 10.1±0.2 |
| 2/5AAA | 1.2 | 200 | 20.2±0.5 | 10.0±0.2 |
| 1/3AAA | 1.2 | 120 | 14.6±0.5 | 10.0±0.2 |
| 1/2AAA | 1.2 | 230 | 23.5±0.5 | 10.0±0.2 |
| 2/3AAA | 1.2 | 300 | 27.5±0.5 | 10.0±0.2 |
| 4/5AAA | 1.2 | 500 | 37.5±0.5 | 10.0±0.2 |
| 5/4AAA | 1.2 | 750 | 50.5±0.5 | 10.0±0.2 |
| AA | 1.2 | 600 | 49.5±0.5 | 13.9±0.2 |
| AA | 1.2 | 900 | 49.5±0.5 | 13.9±0.2 |
| AA | 1.2 | 900 | 48.0±0.5 | 13.9±0.2 |
| AA | 1.2 | 1100 | 49.5±0.5 | 13.9±0.2 |
| AA | 1.2 | 1100 | 48.0±0.5 | 13.9±0.2 |
| AA | 1.2 | 1200 | 49.5±0.5 | 13.9±0.2 |
| AA | 1.2 | 1200 | 48.0±0.5 | 13.9±0.2 |
| AA | 1.2 | 1300 | 49.5±0.5 | 13.9±0.2 |
| AA | 1.2 | 1300 | 48.0±0.5 | 13.9±0.2 |
| AA | 1.2 | 1500 | 49.5±0.5 | 13.9±0.2 |
| AA | 1.2 | 1500 | 48.0±0.5 | 13.9±0.2 |
| AA | 1.2 | 1600 | 49.5±0.5 | 13.9±0.2 |
| AA | 1.2 | 1600 | 48.0±0.5 | 13.9±0.2 |
| AA | 1.2 | 1700 | 49.5±0.5 | 13.9±0.2 |
| AA | 1.2 | 1700 | 48.0±0.5 | 13.9±0.2 |
| AA | 1.2 | 1800 | 50.0±0.5 | 14.2±0.2 |
| AA | 1.2 | 1800 | 48.0±0.5 | 14.2±0.2 |
| AA | 1.2 | 2000 | 50.0±0.5 | 14.2±0.2 |
| AA | 1.2 | 2000 | 48.0±0.5 | 14.2±0.2 |
| AA | 1.2 | 2200 | 50.0±0.5 | 14.2±0.2 |
| AA | 1.2 | 2200 | 48.0±0.5 | 14.2±0.2 |
| AA | 1.2 | 2300 | 50.0±0.5 | 14.2±0.2 |
| AA | 1.2 | 2400 | 50.0±0.5 | 14.2±0.2 |
| 1/3AA | 1.2 | 300 | 16.3±0.5 | 13.9±0.2 |
| 2/5AA | 1.2 | 400 | 21.0±0.5 | 13.9±0.2 |
| 1/2AA | 1.2 | 500 | 24.0±0.5 | 13.9±0.2 |
| 2/3AA | 1.2 | 300 | 28.1±0.5 | 13.9±0.2 |
| 2/3AA | 1.2 | 600 | 28.1±0.5 | 13.9±0.2 |
| 2/3AA | 1.2 | 650 | 28.1±0.5 | 13.9±0.2 |
| 2/3AA | 1.2 | 700 | 28.1±0.5 | 13.9±0.2 |
| 4/5AA | 1.2 | 1200 | 42.6±0.5 | 13.9±0.2 |
| 7/5AA | 1.2 | 1800 | 64.5±0.5 | 13.9±0.2 |
| A | 1.2 | 2100 | 49.0±0.5 | 16.60±0.2 |
| 1/2A | 1.2 | 1000 | 27.4±0.5 | 16.3±0.2 |
| 1/2A | 1.2 | 1100 | 27.4±0.5 | 16.3±0.2 |
| 2/5A | 1.2 | 600 | 21.5±0.5 | 16.60±0.2 |
| 4/5A | 1.2 | 1800 | 42.1±0.5 | 16.60±0.2 |
| 4/5A | 1.2 | 2000 | 42.1±0.5 | 16.60±0.2 |
| 7/5A | 1.2 | 3500 | 66.0±0.5 | 16.60±0.2 |
| 7/5A | 1.2 | 3800 | 66.0±0.5 | 16.60±0.2 |
| SC | 1.2 | 2400 | 42.0±0.5 | 22.0±0.2 |
| SC | 1.2 | 2800 | 42.0±0.5 | 22.0±0.2 |
| SC | 1.2 | 3000 | 42.0±0.5 | 22.0±0.2 |
| SC | 1.2 | 3300 | 42.0±0.5 | 22.0±0.2 |
| 4/5SC | 1.2 | 2000 | 32.5±0.5 | 22.0±0.2 |
| 5/4SC | 1.2 | 3500 | 49.0±0.5 | 22.0±0.2 |
| C | 1.2 | 2500 | 49.0±0.5 | 25.2±0.2 |
| C | 1.2 | 2500 | 49.0±0.5 | 25.2±0.2 |
| C | 1.2 | 3300 | 49.0±0.5 | 25.2±0.2 |
| C | 1.2 | 3300 | 49.0±0.5 | 25.2±0.2 |
| C | 1.2 | 3700 | 49.0±0.5 | 25.2±0.2 |
| C | 1.2 | 3700 | 49.0±0.5 | 25.2±0.2 |
| C | 1.2 | 4000 | 49.0±0.5 | 25.2±0.2 |
| C | 1.2 | 4000 | 49.0±0.5 | 25.2±0.2 |
| C | 1.2 | 4500 | 49.0±0.5 | 25.2±0.2 |
| C | 1.2 | 4500 | 49.0±0.5 | 25.2±0.2 |
| D | 1.2 | 5000 | 60.5±0.5 | 32.1±0.2 |
| D | 1.2 | 5000 | 59.0±0.5 | 32.1±0.2 |
| D | 1.2 | 8000 | 60.5±0.5 | 32.3±0.2 |
| D | 1.2 | 8000 | 59.0±0.5 | 32.1±0.2 |
| D | 1.2 | 8500 | 59.0±0.5 | 32.1±0.2 |
| D | 1.2 | 9000 | 60.5±0.5 | 32.1±0.2 |
| D | 1.2 | 9000 | 59.0±0.5 | 32.1±0.2 |
| 1/2D | 1.2 | 3500 | 36.5±0.5 | 32.1±0.2 |
| 1/2D | 1.2 | 3500 | 35.0±0.5 | 32.1±0.2 |
| F | 1.2 | 14000 | 90.5±0.5 | 32.1±0.2 |
| F | 1.2 | 13000 | 89.0±0.5 | 32.1±0.2 |
| 9V | 9 | 280 | 17.5 | 48.5*26.5 |
Lus battery also have cion type nimh battery button nimh battery as follow:
| Cell model | Voltage(V) | Capacity(mah) | Diameter(mm) | Height(mm) | Charge current(mA) | Discharge current(mA) | Weight(g) | Temperature(°C) |
| 20H | 1.2 | 20 | 11.7±0.1 | 3.2±0.2 | 2 | 4 | 1.5 | 0~45 |
| 40H | 1.2 | 40 | 11.7±0.1 | 5.2±0.2 | 4 | 8 | 1.8 | 0~45 |
| 60H | 1.2 | 60 | 15.3±0.1 | 6.1±0.2 | 6 | 12 | 2 | 0~45 |
| 80H | 1.2 | 80 | 15.3±0.1 | 6.1±0.2 | 8 | 16 | 3.5 | 0~45 |
| 110H | 1.2 | 110 | 15.3±0.1 | 7.7±0.2 | 10 | 20 | 4.5 | 0~45 |
| 160H | 1.2 | 150 | 24.5*14±0.1 | 5.2±0.2 | 15 | 30 | 6 | 0~45 |
| 250H | 1.2 | 250 | 25±0.1 | 6.3±0.2 | 25 | 50 | 10 | 0~45 |
| 330H | 1.2 | 330 | 25±0.1 | 8.4±0.2 | 30 | 60 | 12.5 | 0~45 |
