원래 장소:
중국
브랜드 이름:
OEM
모델 번호:
10AH 리튬 배터리 Lp955565
11.1V 10AH rechargeable lithium ion battery LP955565 polymer lithium battery
955565 3.7V 5000mAh Li-Po Battery for Various Applications.
Li-Polymer battery LP955565 standardd single cell 3.7V and with a capacity of 5000mAh
LP955565 lipo battery pack 11.1volt lithium battery 10AH Prismatic Rechargeable Lithium Polymer Battery
The 11.1V 10ah lithium ion battery pack make with 3S2P LP955565 lipo battery cell
Battery type: Rechargeable lithium polymer ion battery
Battery voltage: 3.7V single cell and 11.1V battery pack
Battery capacity: single cell 5000mah and 10000mah battery pack
Battery cell model: LP955565 polymer battery
Combination: 3S2P
Protection: PCM
Terminals: Pins/wires/connector depends on your needed
| Description name | Rechargeable polymer battery |
| Battery type | 11.1V 10aH battery |
| Battery cell | LP955565 |
| Voltage | 11.1 volt lithium battery pack |
| Capacity | 10AH rechargeable battery |
| Size | 61*57*71mm |
| Protect | PCM |
| Terminals | Wires or connector depends on your needed |
| Current | Standard 0.2C Max 2C |
| OEM and ODM | Welcome |
3S2P polymer battery battery pack 11.1V 955565 drawing:

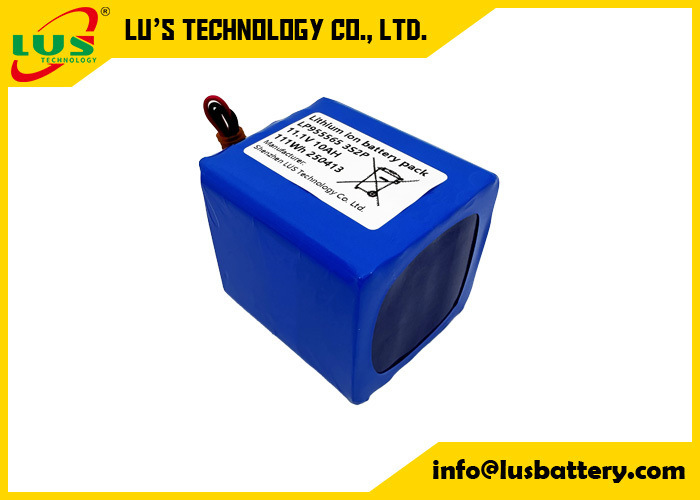

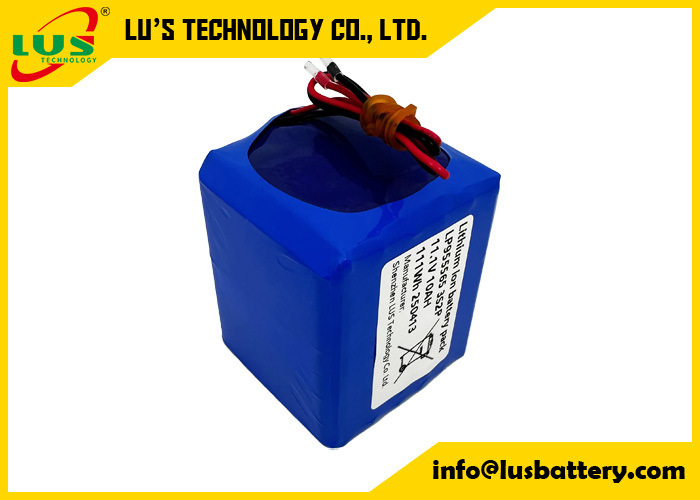

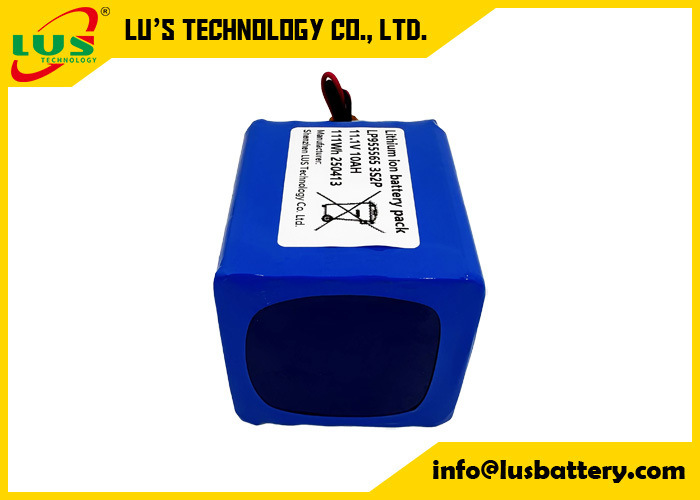

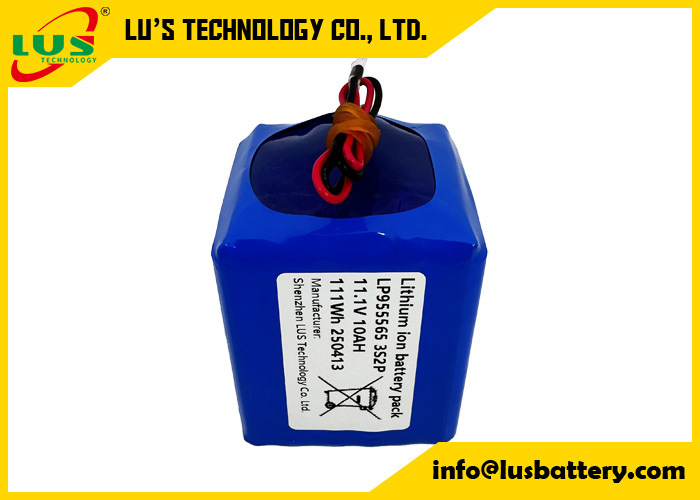

11.1V lithium battery 10AH rechargeable battery pack built with LP955565 lipo battery 3S2P battery pack:
Major Application:
1)MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products
2)Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.
Appearance
There shall be no such defect as flaw, crack, rust, leakage, which may adversely affect
commercial value of battery.
Li-Polymer battery Product Advantages:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 or 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same
Li ion Polymer Lithium Rechargeable Battery list:
| Model | Voltage | capacity | Dimension(mm) | Model | Voltage | capacity | Dimension(mm) | Model | Voltage | capacity | Dimension(mm) | ||
| 014461 | 3.7V | 180mAh | 0.1*44*61 | 503759 | 3.7V | 1200mAh | 5*37*61 | 803040 | 3.7V | 950mAh | 8*30*42 | ||
| 102025 | 3.7V | 500mAh | 10*20*27 | 503844 | 3.7V | 900mAh | 5*38*44 | 803048 | 3.7V | 1200mAh | 8*30*50 | ||
| 102040 | 3.7V | 750mAh | 10*20*42 | 504040 | 3.7V | 800mAh | 5*40*42 | 803160 | 3.7V | 1800mAh | 8*31*60 | ||
| 102050 | 3.7V | 1000mAh | 10*20*52 | 505050 | 3.7V | 1500mAh | 5*50*52 | 803273 | 3.7V | 2000mAh | 8*32*73 | ||
| 102055 | 3.7V | 1100mAh | 10*20*57 | 505573 | 3.7V | 2500mAh | 5*55*75 | 803443 | 3.7V | 1200mAh | 8*34*45 | ||
| 102265 | 3.7V | 1500mAh | 10*22*65 | 506090 | 3.7V | 3000mAh | 5*60*92 | 803445 | 3.7V | 1200mAh | 8*34*47 | ||
| 102525 | 3.7V | 500mAh | 10*25*27 | 523450 | 3.7V | 1000mAh | 5.2*34*52 | 803448 | 3.7V | 1300mAh | 8*34*50 | ||
| 102530 | 3.7V | 650mAh | 10*25*32 | 551525 | 3.7V | 170mAh | 5.5*15*27 | 803450 | 3.7V | 1500mAh | 8*34*52 | ||
| 102540 | 3.7V | 1200mAh | 10*25*42 | 551656 | 3.7V | 480mAh | 5.5*16*58 | 804050 | 3.7V | 1800mAh | 8*40*50 | ||
| 103040 | 3.7V | 1200mAh | 10*30*42 | 552045 | 3.7V | 450mAh | 5.5*20*47 | 804050 | 3.7V | 2000mAh | 8*40*52 | ||
| 103040-3C | 3.7V | 1200mAh | 10*30*42 | 601235 | 3.7V | 200mAh | 6*12*37 | 804068 | 3.7V | 2500mAh | 8*40*70 | ||
| 103048 | 3.7V | 1400mAh | 10*30*50 | 601535 | 3.7V | 250mAh | 6*15*37 | 805080 | 3.7V | 4000mAh | 8*50*80 | ||
| 103450 | 3.7V | 1800mAh | 10*34*52 | 601720 | 3.7V | 150mAh | 6*17*22 | 805185 | 3.7V | 4000mAh | 8*51*87 | ||
| 103450 | 3.7V | 2000mAh | 10*34*50 | 601730 | 3.7V | 250mAh | 6*17*32 | 832248 | 3.7V | 920mAh | 8.3*22*50 | ||
| 103759 | 3.7V | 2500mAh | 10*37*61 | 602025 | 3.7V | 250mAh | 6*20*27 | 851768 | 3.7V | 850mAh | 8.5*17*69 | ||
| 104050 | 3.7V | 2300mAh | 10*40*52 | 602030 | 3.7V | 300mAh | 6*20*32 | 852025 | 3.7V | 350mAh | 8.5*20*25 | ||
| 104050 | 3.7V | 2400mAh | 10*40*52 | 602035 | 3.7V | 400mAh | 6*20*37 | 901428 | 3.7V | 260mAh | 9*14*30 | ||
| 104060 | 3.7V | 2800mAh | 10*40*62 | 602040 | 3.7V | 400mAh | 6*20*42 | 901744 | 3.7V | 680mAh | 9*17*46 | ||
| 104060 | 3.7V | 3000mAh | 10*40*62 | 602040 | 3.7V | 450mAh | 6*20*42 | 902025 | 3.7V | 400mAh | 9*20*27 | ||
| 104065 | 3.7V | 3200mAh | 10*40*67 | 602047 | 3.7V | 540mAh | 6*20*49 | 902028 | 3.7V | 500mAh | 9*20*30 | ||
| 105050 | 3.7V | 3000mAh | 10*50*52 | 602530 | 3.7V | 450mAh | 6*25*32 | 902030 | 3.7V | 500mAh | 9*20*32 | ||
| 105060 | 3.7V | 3500mAh | 10*50*62 | 602535 | 3.7V | 500mAh | 6*25*37 | 902035 | 3.7V | 600mAh | 9*20*37 | ||
| 105065 | 3.7V | 4000mAh | 10*50*67 | 603030 | 3.7V | 500mAh | 6*30*32 | 902128 | 3.7V | 500mAh | 9*21*30 | ||
| 105080 | 3.7V | 5000mAh | 10*50*80 | 603040 | 3.7V | 680mAh | 6*30*42 | 902248 | 3.7V | 1050mAh | 9*22*50 | ||
| 105085 | 3.7V | 5000mAh | 10*50*87 | 603048 | 3.7V | 900mAh | 6*30*50 | 902535 | 3.7V | 800mAh | 9*25*37 | ||
| 105573 | 3.7V | 5000mAh | 10*55*75 | 603450 | 3.7V | 1200mAh | 6*34*52 | 903450 | 3.7V | 1600mAh | 9*34*52 | ||
| 112840 | 3.7V | 1300mAh | 11*28*42 | 603759 | 3.7V | 1400mAh | 6*37*61 | 951768 | 3.7V | 1200mAh | 9.5*17*69 | ||
| 112843 | 3.7V | 1500mAh | 11*28*45 | 604050 | 3.7V | 1500mAh | 6*40*52 | 955050 | 3.7V | 2800mAh | 9.5*50*52 | ||
| 113942 | 3.7V | 1800mAh | 11*39*42 | 604060 | 3.7V | 1700mAh | 6*40*62 | 955565 | 3.7V | 5000mAh | 9.5*55*67 | ||
| 124040 | 3.7V | 2000mAh | 12*40*42 | 604070 | 3.7V | 2000mAh | 6*40*72 | 18650 | 3.7V | 2200mAh | / | ||
| 124060 | 3.7V | 3600mAh | 12*40*62 | 605060 | 3.7V | 2000mAh | 6*50*62 | 18650 | 3.7V | 2600mAh | / | ||
| 124678 | 3.8V | 5600mAh | 12*46*80 | 605080 | 3.7V | 3000mAh | 6*50*82 | 1162105 | 3.7V | 10000mAh | 11*62*107 | ||
| 136198 | 3.7V | 8000mAh | 13*61*100 | 605473 | 3.7V | 3000mAh | 6*54*75 | 3060100 | 3.7V | 2000mAh | 3*60*100 | ||
| 152053 | 3.7V | 1500mAh | 15*20*53 | 606090 | 3.7V | 4000mAh | 6*60*92 | 4027110 | 3.7V | 1000mAh | 4*27*102 | ||
| 251416 | 3.7V | 35mAh | 2.5*14*18 | 634169 | 3.7V | 2000mAh | 6.3*41*71 | 6080130 | 3.7V | 8000mAh | 6*80*130 | ||
| 252040 | 3.7V | 170mAh | 2.5*20*42 | 641447 | 3.7V | 400mAh | 6.4*14*49 | 8050123 | 3.7V | 6000mAh | 8*50*125 | ||
| 285272 | 3.7V | 1000mAh | 3*52*74 | 651476 | 3.7V | 900mAh | 6.5*14*78 | 8562112 | 3.7V | 7500mAh | 8.5*62*114 | ||
| 301120 | 3.7V | 40mAh | 3*11*20 | 651725 | 3.7V | 230mAh | 6.5*17*27 | 3087125 | 3.8V | 5000mAh | 3*87*127 | ||
| 301525 | 3.7V | 80mAh | 3*15*27 | 652540 | 3.7V | 650mAh | 6.5*25*40 | 3380110 | 3.8V | 4600mAh | 3.3*80*112 | ||
| 302020 | 3.7V | 85mAh | 3*20*22 | 653040 | 3.7V | 800mAh | 6.5*30*42 | 6759104 | 3.8V | 5000mAh | 6.7*59*104 | ||
| 302525 | 3.7V | 140mAh | 3*25*27 | 654060 | 3.7V | 1700mAh | 6.5*40*60 | 9559104 | 3.8V | 8000mAh | 9.5*59*106 | ||
| 303040 | 3.7V | 320mAh | 3*30*42 | 654065 | 3.7V | 2000mAh | 6.5*40*67 | 30134112 | 3.8V | 7000mAh | 3*134*114 | ||
| 303048 | 3.7V | 400mAh | 3*30*50 | 655272 | 3.7V | 3000mAh | 6.5*52*72 | 32100100 | 3.8V | 5100mAh | 3.2*100*102 | ||
| 303055 | 3.7V | 500mAh | 3*30*57 | 686770 | 3.7V | 4000mAh | 6.8*67*72 | 32100125 | 3.8V | 6000mAh | 3.2*100*127 | ||
| 303997 | 3.7V | 1500mAh | 3*39*99 | 701240 | 3.7V | 280mAh | 7*12*42 | 32105115 | 3.8V | 6000mAh | 3.2*105*117 | ||
| 352020 | 3.7V | 75mAh | 圆形 | 701525 | 3.7V | 200mAh | 7*15*27 | 32105140 | 3.8V | 7000mAh | 3.2*105*142 | ||
| 352228 | 3.7V | 200mAh | 3.5*22*30 | 701330 | 3.7V | 200mAh | 7*13*30 | 33100120 | 3.8V | 6000mAh | 3.3*100*122 | ||
| 373050 | 3.7V | 580mAh | 3.7*30*52 | 701339 | 3.7V | 350mAh | 7*13*41 | 102265-2P | 3.7V | 3000mAh | 21*22*67 | ||
| 382730 | 3.7V | 280mAh | 3.8*27*32 | 701355 | 3.7V | 500mAh | 7*13*57 | 103030-2P | 3.7V | 2000mAh | 21*31*32 | ||
| 388085 | 3.8V | 3800mAh | 3.8*80*87 | 701488 | 3.7V | 850mAh | 7*14*90 | 162027-2P | 3.7V | 700mAh | 16*20*27 | ||
| 401012 | 3.7V | 30mAh | 4*10*14 | 701535 | 3.7V | 350mAh | 7*15*37 | 503759-2P | 3.7V | 2400mAh | 11*37*62 | ||
| 401042 | 3.7V | 100mAh | 4*10*44 | 702025 | 3.7V | 300mAh | 7*20*27 | 803060-2P | 3.7V | 3600mAh | 16*31*63 | ||
| 401120 | 3.7V | 55mAh | 4*11*22 | 702050 | 3.7V | 700mAh | 7*20*52 | 706090-2P | 3.7V | 10000mAh | 14*60*92 | ||
| 401230 | 3.7V | 110mAh | 4*12*32 | 702060 | 3.7V | 850mAh | 7*20*62 | 502025-4P | 3.7V | 800mAh | 21*20*27 | ||
| 401235 | 3.7V | 120mAh | 4*12*37 | 702248 | 3.7V | 700mAh | 7*22*50 | 414256-2S | 7.4V | 5500mAh | 41*42*58 | ||
| 401430 | 3.7V | 120mAh | 4*14*32 | 702248 | 3.7V | 800mAh | 7*22*50 | 604040-2S | 7.4V | 1000mAh | 13*40*43 | ||
| 401430 | 3.7V | 130mAh | 4*14*32 | 702257 | 3.7V | 1000mAh | 7*22*59 | 102050-2S | 7.4V | 1000mAh | 20*20*53 | ||
| 402065 | 3.7V | 550mAh | 4*20*67 | 703048 | 3.7V | 1000mAh | 7*30*50 | 103048-2S | 7.4V | 1400mAh | 20*30*50 | ||
| 402780 | 3.7V | 1000mAh | 4*27*82 | 703440 | 3.7V | 1000mAh | 7*34*42 | 104050-2S | 7.4V | 2500mAh | 20*40*52 | ||
| 402895 | 3.7V | 1200mAh | 4*28*97 | 704578 | 3.7V | 2900mAh | 7*45*80 | 124060-2S | 7.4V | 1700mAh | 12*40*63 | ||
| 402934 | 3.7V | 350mAh | 4*29*36 | 706090 | 3.7V | 5000mAh | 7*60*92 | 473233-2S | 7.4V | 450mAh | 9.4*32*35 | ||
| 403048 | 3.7V | 580mAh | 4*30*50 | 721944 | 3.7V | 630mAh | 7.2*19*46 | 503450-2S | 7.4V | 1000mAh | 10*34*52 | ||
| 403274 | 3.7V | 1000mAh | 4*32*74 | 751339 | 3.7V | 350mAh | 7.5*13*39 | 603030-2S | 7.4V | 500mAh | 12*30*32 | ||
| 405085 | 3.7V | 2000mAh | 4*50*87 | 751355 | 3.7V | 480mAh | 7.5*13*55 | 603450-2S | 7.4V | 1200mAh | 12*34*52 | ||
| 441722 | 3.7V | 110mAh | 4.4*17*22 | 751635 | 3.7V | 380mAh | 7.5*16*37 | 702257-2S | 7.4V | 1000mAh | 14*22*59 | ||
| 443441 | 3.7V | 650mAh | 4.4*34*43 | 752035 | 3.7V | 500mAh | 7.5*20*37 | 804068-2S | 7.4V | 2500mAh | 16*40*70 | ||
| 462035 | 3.7V | 320mAh | 4.6*20*35 | 752530 | 3.7V | 570mAh | 7*25*32 | 902055-2S | 7.4V | 1100mAh | 18*20*57 | ||
| 500840 | 3.7V | 130mAh | 5*8*42 | 753450 | 3.7V | 1300mAh | 7.5*34*52 | 4030100-2S | 7.4V | 1400mAh | 8*30*102 | ||
| 501225 | 3.7V | 110mAh | 5*12*25 | 755060 | 3.7V | 3000mAh | 7.5*50*62 | 104060-3S | 11.1V | 3000mAh | 20*40*62 | ||
| 501318 | 3.7V | 55mAh | 5*13*20 | 756077 | 3.7V | 4800mAh | 7.5*60*77 | 603048-3S | 11.1V | 900mAh | 19*30*50 | ||
| 501447 | 3.7V | 280mAh | 5*14*49 | 782150 | 3.7V | 800mAh | 7.8*21*52 | 603450-3S | 11.1V | 1200mAh | 19*34*52 | ||
| 501535 | 3.7V | 200mAh | 5*15*37 | 801350 | 3.7V | 500mAh | 8*13*52 | 6067101-3S | 11.1V | 5800mAh | 18*67*103 | ||
| 501873 | 3.7V | 700mAh | 5*18*75 | 801735 | 3.7V | 500mAh | 8*17*37 | 285272-5S | 18.5V | 1000mAh | / | ||
| 502025 | 3.7V | 200mAh | 5*20*27 | 802030 | 3.7V | 400mAh | 8*20*32 | 403274-6S | 22.2V | 1000mAh | 31*33*78 | ||
| 502030 | 3.7V | 250mAh | 5*20*32 | 802035 | 3.7V | 500mAh | 8*20*37 | 4527106-6S | 22.2V | 1400mAh | 27*27*108 | ||
| 502035 | 3.7V | 300mAh | 5*20*37 | 802040 | 3.7V | 600mAh | 8*20*42 | 18650-30Q-2P | 3.7V | 6000mAh | / | ||
| 502065 | 3.7V | 700mAh | 5*20*67 | 802050 | 3.7V | 800mAh | 8*20*52 | 18650-2S | 7.4V | 2000mAh | / | ||
| 502248 | 3.7V | 500mAh | 5*22*50 | 802248 | 3.7V | 1000mAh | 8*22*50 | 18650-2S2P | 7.4V | 5200mAh | / | ||
| 502525 | 3.7V | 280mAh | 5*25*27 | 802528 | 3.7V | 480mAh | 8*25*30 | 18650-2S2P | 7.4V | 6360mAh | / | ||
| 502530 | 3.7V | 350mAh | 5*25*32 | 802528 | 3.7V | 500mAh | 8*25*30 | 18650-2S3P | 7.4V | 9000mAh | / | ||
| 502535 | 3.7V | 400mAh | 5*25*37 | 802530 | 3.7V | 600mAh | 8*25*32 | 18650-3S | 11.1V | 2550mAh | / | ||
| 502545 | 3.7V | 600mAh | 5*25*47 | 802535 | 3.7V | 650mAh | 8*25*35 | 18650-3S | 11.1V | 2600mAh | / | ||
| 502728 | 3.7V | 360mAh | 5*27*30 | 802535 | 3.7V | 700mAh | 8*25*35 | 192560 | 3.2V | 1800mAh | 19*25*62 | ||
| 503035 | 3.7V | 500mAh | 5*30*37 | 802540 | 3.7V | 800mAh | 8*25*42 | 143060 | 3.2V | 1800mAh | 14*30*62 | ||
| 503040 | 3.7V | 600mAh | 5*30*42 | 803030 | 3.7V | 700mAh | 8*30*30 | 503035 | 3.2V | 300mAh | 5*30*35 | ||
| 503048 | 3.7V | 750mAh | 5*30*50 | 803035 | 3.7V | 800mAh | 8*30*37 | 18650 | 3.2V | 1500mAh | / | ||
| 503670 | 3.7V | 1500mAh | 5*36*70 | 803040 | 3.7V | 900mAh | 8*30*42 | 14500 | 3.7V | 800mAh | / |
