6V lithium battery 3000mah CP505050 2S primary lithium battery pack customization factory
Lithium battery 6.0V 3000mah can be make with our pouch cell limno2 battery CP505050 2S series
The 6V3000mah limno2 battery CP505050 pouch cell lithium battery pack 3000mah limno2 soft battery 6Volt battery
Flexible lithium battery 6V flat lithium battery CP505050 2S battery pack from LUS battery factory
Our factory welcome any pouch cell lithium manganese battery customized in any size as you want
Capacity from 4mah to 16000mah as below model:
CP9V CP054535 CP056045 CP063945 CP064040 CP064090 CP072922 CP074545 CP084015 CP084248 CP087022 CP089022 CP1002045 CP1002440 CP1003450 CP1003550 CP10037104 CP1003742 CP10044116 CP1004550 CP1005050 CP1005060 CP1007060 CP105050 CP1102425 CP1105065 CP114752 CP1202425 CP145550 CP153030 CP155050 CP155070 CP224147 CP232740 CP233347 CP253054 CP253428 CP254045 CP281025 CP301020 CP301725 CP302525 CP302575 CP303054 CP303742 CP305050 CP343550 CP352140 CP352440 CP382140 CP383047 CP401725 CP402522 CP403054 CP403345 CP405050 CP405060 CP422130 CP451830 CP472130 CP501725 CP501830 CP502025 CP502440 CP502525 CP502530 CP502537 CP503742 CP505050 CP551725 CP551830 CP553550 CP601733 CP603446 CP603448 CP603550 CP603742 CP605050 CP651848 CP652440 CP653742 CP681916 CP702025 CP702440 CP702537 CP703047 CP7037104 CP7039109 CP704216 CP705050 CP752425 CP754548 CP7839109 CP802025 CP802240 CP8026110 CP8044116 CP804560 CP853078 CP902440 CP902525 CP9026110 CP9032100 CP903450 CP905050 CP952440 CP952434 CP953083 CP9539109 CP955060
Soft li-mno2 battery Cp505050 2S lithium primary battery pack 3000mah 6V disposable battery CP505050 non rechargeable battery CP505050 6V batteries OEm 3000mah primary lithium metal battery
Battery voltage 6.0 volt limno2 battery
Battery capacity 3000mah lithium soft battery
Discharge current 1500 - 2000 mA
| Name | Li-MnO2 Battery ultra thin cell |
| Model | CP505050 2S |
| Voltage | 6.0V |
| Capacity | 3000mah |
| Dimension | Max.5.2*105*51mm |
| Temperature | -40 to +70 |
| Weight | 48g |
| Max.Continuous Current (mA) | 1500mA |
| Max.Pulse Current (mA) | 2000mA |
| Terminals | Can be customized |
| OEM and ODM | Welcome |

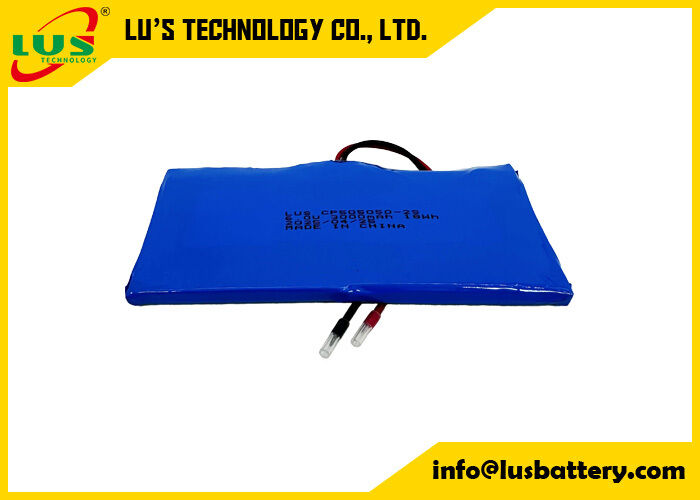

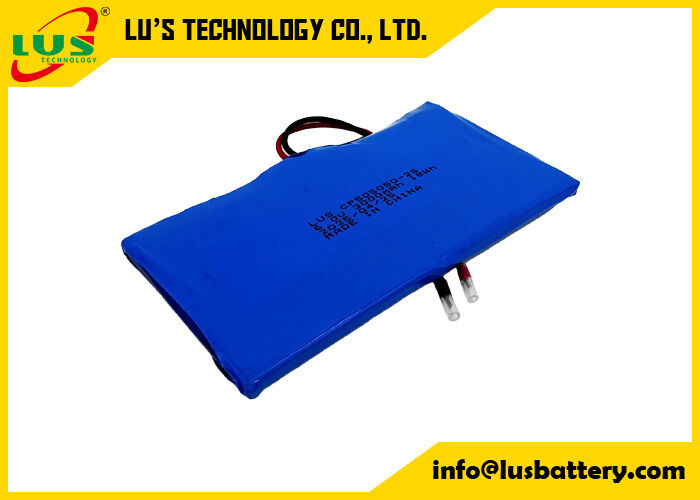

6V lithium battery cp505050 2S lithium primary battery picture
thin cell batteries from LUS battery OEM soft lithium battery :
| Item | Model | Dimensions (T*W*L)mm |
Max continuns current (mA) | Max Plus current (mA) | Weight (g) |
Capacity (mAh ) |
| 1 | CP9V | 17.5*26.5*48.5 | 300 | 600 | 37 | 1200 |
| 2 | CP054535 | 0.65*45.5*35 | 20 | 50 | 1.35 | 110 |
| 3 | CP056045 | 0.65*60*45 | 40 | 80 | 2.5 | 220 |
| 4 | CP063945 | 0.6*39*45.5 | 40 | 80 | 1.7 | 170 |
| 5 | CP064040 | 0.65*40*40 | 20 | 50 | 1.3 | 110 |
| 6 | CP064090 | 0.65*40.5*90 | 80 | 150 | 3.5 | 320 |
| 7 | CP072922 | 0.8*29*23 | 0.25 | 10 | 0.6 | 28 |
| 8 | CP074545 | 0.7*45*45 | 40 | 80 | 2.05 | 200 |
| 9 | CP084015 | 0.8*40*15 | 5 | 10 | 0.55 | 40 |
| 10 | CP084248 | 0.95*42*48.5 | 40 | 80 | 2.4 | 200 |
| 11 | CP087022 | 0.8*70*22 | 20 | 40 | 1.6 | 150 |
| 12 | CP089022 | 0.8*90*22 | 40 | 80 | 1.7 | 230 |
| 13 | CP1002045 | 9.8*20.5*45 | 800 | 1000 | 13.8 | 2000 |
| 14 | CP1002440 | 9.8*24*41.5 | 800 | 1200 | 15.2 | 2400 |
| 15 | CP1003450 | 10.0*34*50 | 1000 | 2000 | 27.8 | 4500 |
| 16 | CP1003550 | 10.0*35*50 | 1500 | 2500 | 29.2 | 5000 |
| 17 | CP10037104 | 10.2*36*104 | 3000 | 5000 | 70.2 | 12000 |
| 18 | CP10037104K | 10.5*36.5*106.5 | 3000 | 4500 | 68.5 | 12000 |
| 19 | CP1003742 | 10.0*38*42 | 1500 | 2000 | 25.18 | 4000 |
| 20 | CP10044116 | 9.8*44.5*116 | 3000 | 5000 | 90 | 16000 |
| 21 | CP1004550 | 10*45.5*49.5 | 2000 | 3000 | 39.5 | 6500 |
| 22 | CP1004560 | 10.0*45*61 | 3000 | 4500 | 14.5 | 8000 |
| 23 | CP1005050 | 10.1*50*50 | 2000 | 3000 | 44.5 | 7500 |
| 24 | CP1005060 | 10.2*50*60 | 3000 | 5000 | 55.5 | 10000 |
| 25 | CP1007060-Z | 9.8*68*61 | 2000 | 3000 | 69.5 | 12000 |
| 26 | CP105050 | 1.05*50*51 | 80 | 120 | 3.45 | 320 |
| 27 | CP1102425 | 10.8*24*26 | 600 | 700 | 8.76 | 1400 |
| 28 | CP1105065 | 11.0*50*61 | 3000 | 5000 | 58.5 | 10000 |
| 29 | CP114752 | 1.15*47*51.5 | 150 | 200 | 3.6 | 400 |
| 30 | CP114752 | 1.10*47.5*52 | 100 | 200 | 4.1 | 540 |
| 31 | CP1202425 | 11.8*24*26 | 600 | 800 | 9.5 | 1450 |
| 32 | CP145550 | 1.45*55.5*50 | 100 | 200 | 6.2 | 600 |
| 33 | CP153030 | 1.7*30*31.5 | 20 | 40 | 1.68 | 150 |
| 34 | CP155050 | 1.65*50*50.5 | 200 | 250 | 4.8 | 500 |
| 35 | CP155050 | 1.5*50*50 | 200 | 300 | 5.7 | 710 |
| 36 | CP155070 | 1.5*50.5*70 | 300 | 500 | 8 | 1080 |
| 37 | CP224147 | 2.4*44*49 | 200 | 400 | 7.6 | 850 |
| 38 | CP232740 | 2.3*27*41.5 | 100 | 200 | 3.5 | 400 |
| 39 | CP233347 | 2.2*33*48 | 200 | 300 | 5 | 600 |
| 40 | CP253054 | 2.5*33*54 | 200 | 400 | 7.2 | 800 |
| 41 | CP253428 | 2.5*34*28 | 100 | 150 | 2.9 | 350 |
| 42 | CP254045 | 2.4*40*45 | 200 | 400 | 6.7 | 800 |
| 43 | CP281025 | 2.7*10*25 | 10 | 20 | 0.9 | 85 |
| 44 | CP301020 | 3.0*10*21 | 20 | 40 | 0.83 | 95 |
| 45 | CP301725 | 3.05*17.5*24.5 | 100 | 150 | 1.84 | 190 |
| 46 | CP302525 | 3.2*25*25 | 100 | 150 | 2.9 | 370 |
| 47 | CP302575 | 2.8*25*75 | 300 | 500 | 9.03 | 1400 |
| 48 | CP303054 | 3.0*30*54 | 300 | 500 | 8.4 | 1000 |
| 49 | CP303742 | 3.2*38*41 | 300 | 600 | 7.65 | 1100 |
| 50 | CP305050 | 3.3*51*51 | 800 | 1000 | 13.3 | 1800 |
| 51 | CP343550 | 3.3*36*50 | 300 | 600 | 9.5 | 1200 |
| 52 | CP352140 | 3.4*21*40 | 200 | 300 | 4.2 | 520 |
| 53 | CP352440 | 3.5*24*41 | 300 | 400 | 5.6 | 650 |
| 54 | CP382140 | 3.8*21*40 | 200 | 300 | 4.7 | 650 |
| 55 | CP383047 | 3.8*30*47.5 | 300 | 500 | 9 | 1350 |
| 56 | CP401725 | 4.1*17*25 | 100 | 150 | 2.4 | 300 |
| 57 | CP402522 | 4.1*24*22 | 150 | 200 | 3.2 | 400 |
| 58 | CP403054 | 3.9*30*54.5 | 600 | 800 | 10.3 | 1500 |
| 59 | CP403345 | 3.9*33*46 | 300 | 600 | 9.8 | 1300 |
| 60 | CP405050 | 4.2*51*51 | 1000 | 1200 | 18.3 | 2500 |
| 61 | CP405060 | 4.0*50.5*61 | 1500 | 2000 | 21.1 | 3000 |
| 62 | CP422130 | 4.1*20.5*30.5 | 150 | 250 | 8.2 | 500 |
| 63 | CP451830 | 4.6*18*31 | 200 | 250 | 3.7 | 500 |
| 64 | CP472130 | 4.7*21*30.5 | 200 | 275 | 4.4 | 550 |
| 65 | CP501725 | 5*16.5*25 | 150 | 200 | 3 | 400 |
| 66 | CP501830 | 5.1*18*31 | 200 | 300 | 4.01 | 500 |
| 67 | CP502025 | 5.0*19*25 | 100 | 200 | 3.6 | 500 |
| 68 | CP502440 | 5.2*24.5*41.5 | 300 | 600 | 8.6 | 1200 |
| 69 | CP502525 | 5.2*25*25 | 200 | 400 | 4.5 | 600 |
| 70 | CP502530 | 5.0*24*30 | 200 | 300 | 5.51 | 750 |
| 71 | CP502537 | 5.1*25*38 | 300 | 600 | 8.2 | 1200 |
| 72 | CP503742 | 5.2*37*42 | 800 | 1000 | 13.75 | 1900 |
| 73 | CP505050 | 5.2*50.5*51 | 1500 | 2000 | 23.96 | 3500 |
| 74 | CP505050-S | 5.1*50*50 | 1000 | 1500 | 24 | 3200 |
| 75 | CP505060 | 4.9*50*60.5 | 1500 | 2000 | 27.3 | 4000 |
| 76 | CP551725 | 5.6*17*25 | 150 | 200 | 3.2 | 400 |
| 77 | CP551850 | 5.6*18*48 | 300 | 500 | 7.35 | 1050 |
| 78 | CP553550 | 5.5*35*50 | 1000 | 1200 | 16.1 | 2400 |
| 79 | CP601733 | 5.8*18*35 | 200 | 400 | 5.6 | 780 |
| 80 | CP603446 | 5.8*34*47 | 800 | 1200 | 15 | 2300 |
| 81 | CP603448 | 6.1*34.5*49 | 1000 | 1400 | 17.4 | 2800 |
| 82 | CP603550 | 6.0*35*50 | 1000 | 1200 | 17.66 | 2700 |
| 83 | CP603742 | 6.0*37*42 | 1000 | 1200 | 15.4 | 2200 |
| 84 | CP605050 | 6.0*50.5*50.5 | 1500 | 2000 | 27.5 | 4000 |
| 85 | CP651848 | 6.4*18*48 | 300 | 600 | 8.3 | 1200 |
| 86 | CP652440 | 6.5*24.5*41.5 | 600 | 1000 | 11.2 | 1500 |
| 87 | CP653742 | 6.5*37*42 | 500 | 1000 | 16.73 | 2600 |
| 88 | CP681916 | 6.8*19*16 | 150 | 200 | 2.61 | 300 |
| 89 | CP702025 | 7.0*20*25 | 200 | 300 | 4.6 | 600 |
| 90 | CP702440 | 7.48*24.5*41 | 700 | 1000 | 12.6 | 1800 |
| 91 | CP702537 | 7.4*25*39.5 | 500 | 800 | 11.9 | 1600 |
| 92 | CP703047-Z | 7.0*30.0*48.0 | 800 | 1200 | 17.4 | 2300 |
| 93 | CP7037104 | 7.0*36*104 | 3000 | 4000 | 47.6 | 8000 |
| 94 | CP7039109 | 7.1*38.5*110.5 | 3000 | 4500 | 54.5 | 9000 |
| 95 | CP704216 | 6.8*41.5*17 | 200 | 300 | 6.1 | 720 |
| 96 | CP705050 | 7.1*50.5*50.5 | 1500 | 2000 | 32.8 | 5000 |
| 97 | CP752425 | 7.5*23*26 | 300 | 600 | 6.5 | 1000 |
| 98 | CP754548 | 7.3*45.5*49 | 1000 | 2250 | 27.7 | 4500 |
| 99 | CP7839109 | 7.7*36*109 | 3000 | 4500 | 55.5 | 10000 |
| 100 | CP7839109K | 7.6*37.5*112 | 2000 | 5000 | 65 | 9100 |
| 101 | CP802025 | 8.0*20*27 | 200 | 400 | 5.5 | 800 |
| 102 | CP802240 | 7.9*22*41 | 600 | 1000 | 10.2 | 1500 |
| 103 | CP8026110 | 7.8*25.5*109.5 | 2000 | 3000 | 38.8 | 6000 |
| 104 | CP8044116K | 7.9*44.5*116 | 2000 | 4000 | 74 | 12000 |
| 105 | CP804560 | 7.9*45.5*59.5 | 2000 | 3000 | 38.5 | 6400 |
| 106 | CP853078 | 8.4*30*78 | 2000 | 3000 | 33.5 | 5500 |
| 107 | CP902440 | 9.2*25*42.5 | 1000 | 1200 | 14.43 | 2250 |
| 108 | CP902525 | 8.9*24*26 | 300 | 600 | 7.7 | 1200 |
| 109 | CP9026110 | 9.0*25.5*110.5 | 2000 | 3000 | 45.8 | 7300 |
| 110 | CP9032100 | 9.0*32*100.5 | 3000 | 5000 | 49.8 | 8000 |
| 111 | CP903450 | 8.9*34*50 | 1500 | 2000 | 27 | 4000 |
| 112 | CP903450-Z | 9.1*34.5*50 | 1000 | 2000 | 26 | 4000 |
| 113 | CP905050 | 8.9*50*51.5 | 2000 | 3000 | 39.5 | 6500 |
| 114 | CP952240 | 9.0*22*41 | 600 | 1000 | 11.9 | 1800 |
| 115 | CP952434 | 9.6*24*34 | 700 | 1000 | 11.7 | 1800 |
| 116 | CP953083 | 9.3*30*83 | 2000 | 3000 | 40.15 | 6500 |
| 117 | CP9539109K | 9.4*37.5*112 | 3000 | 5000 | 80 | 11500 |
| 118 | CP955060 | 9.4*50.5*61 | 3000 | 4500 | 51.38 | 9000 |
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
a. Civilian field: AMR of common instruments and CMOS circuit boards
b. Various smart meters: smart electric meters, water meters, heat meters and gas meters
c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies
d. Radio alarm equipment/sensors: smoke alarms and temperature monitors
e. Remote monitoring systems: positioning devices and marine telemetry systems
f. Automotive electronics: tire pressure monitoring systems
g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.
h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.
CP9V CP054535 CP056045 CP063945 CP064040 CP064090 CP072922 CP074545 CP084015 CP084248 CP087022 CP089022 CP1002045 CP1002440 CP1003450 CP1003550 CP10037104 CP1003742 CP10044116 CP1004550 CP1005050 CP1005060 CP1007060 CP105050 CP1102425 CP1105065 CP114752 CP1202425 CP145550 CP153030 CP155050 CP155070 CP224147 CP232740 CP233347 CP253054 CP253428 CP254045 CP281025 CP301020 CP301725 CP302525 CP302575 CP303054 CP303742 CP305050 CP343550 CP352140 CP352440 CP382140 CP383047 CP401725 CP402522 CP403054 CP403345 CP405050 CP405060 CP422130 CP451830 CP472130 CP501725 CP501830 CP502025 CP502440 CP502525 CP502530 CP502537 CP503742 CP505050 CP551725 CP551830 CP553550 CP601733 CP603446 CP603448 CP603550 CP603742 CP605050 CP651848 CP652440 CP653742 CP681916 CP702025 CP702440 CP702537 CP703047 CP7037104 CP7039109 CP704216 CP705050 CP752425 CP754548 CP7839109 CP802025 CP802240 CP8026110 CP8044116 CP804560 CP853078 CP902440 CP902525 CP9026110 CP9032100 CP903450 CP905050 CP952440 CP952434 CP953083 CP9539109 CP955060
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC and more applications.
NO MOQ with fast lead time.
Welcome for any customized.
Thanks
1.Could you tell me your main product?
Re:Our main production is LiMnO2 flexible battery(ultra thin cell), LiSoCl2 battery and Rechargeable battery.
2.What is your MOQ?
Re: For available items NO MOQ
For OEM designs MOQ is 500 pcs per item
3.Could we do our logo customized ?
Re:Yes,we could do your printing and also accept original design service.
4.What is sample Date?
Re: we will send out within 1 week after details confirmation.
5.What is the Order Deliver Date?
Re: For available items in our stock is 3-5 days is ok.
For OEM designs need 15-25 days
6.Could you tell me your payment item?
Payment Item:
1: T/T, credit card / Visa / Mastercard / Alipay
2: 30% deposit advance,70% balance paid before ship out.
7.What is your After-sell service.
Re: When you find the product are damaged ,pls take photos and send to the salesman you are talking with. We will handle this and give you a satisfied solution method.
8.Can we set order by alibaba online?
Re: Of course you can and we strongly support our customer to set orders on line. No matter you set order online or off-line, you get the quality guarantee by our company.
9.Could we visit you factory before setting orders.
Re: Yes. You can visit our factory when you are convenience. We are sure that you will trust us after your visiting. We will pick you up if you need.
