원래 장소:
중국
브랜드 이름:
OEM
모델 번호:
CR14250 일회용 리튬 배터리 3V 배터리

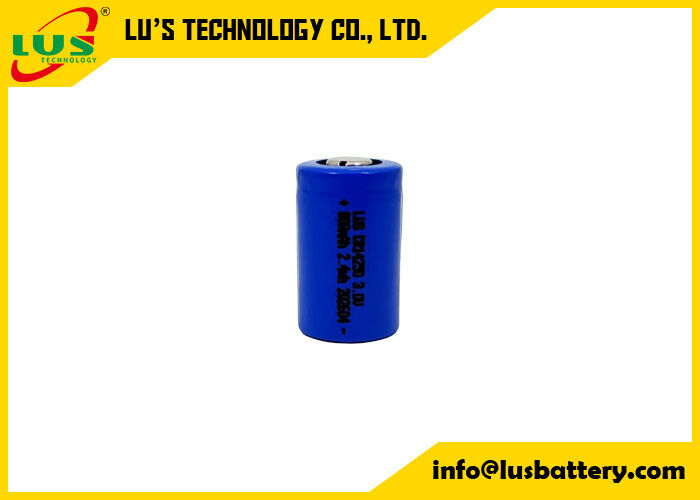

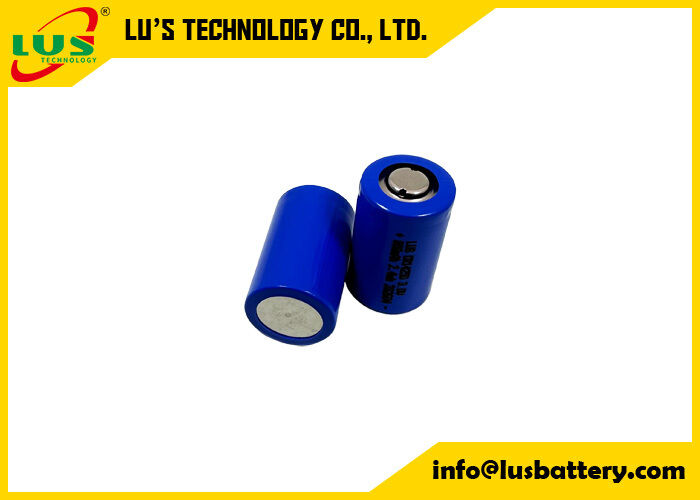

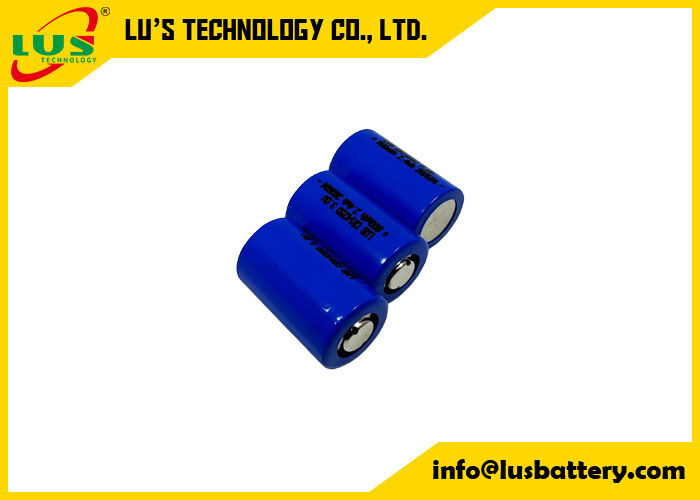

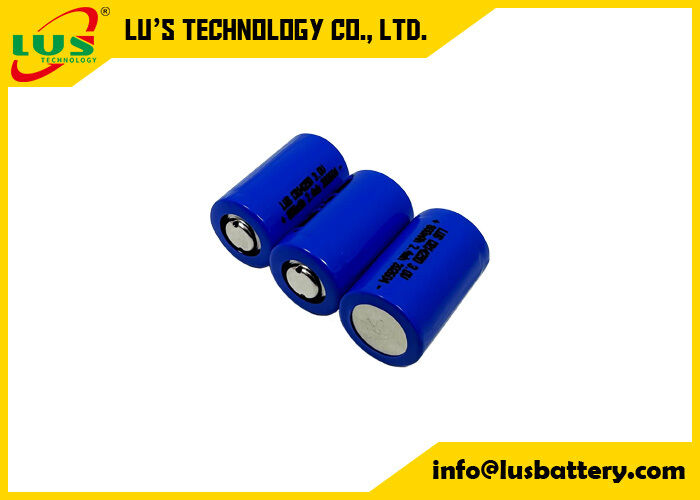

Non-rechargeable battery 3V 850mAh Battery CR14250 battery size 1/2AA type battery
3V Lithium PLC Computer Backup Battery CR14250 3V lithium manganese dioxide battery in size 1/2 AA 14250 batteries CR14250SE 3V Battery 1/2AAL lithium battery 14250 primary battery CR14250 1/2 AA lithium manganese battery R6 battery LS-14250 non rechargeable battery L14250 disposable battery CR14250 limno2 battery CR1/2AA lithium primary battery LS14250SE Lithium Battery CR14250 battery 3V lithium coin cell battery used in medical devices, key fobs, and calculators.
CR14250 primary limno2 battery Specification:
The CR14250 battery is a button type limno2 battery in size 1/2AA primary li/mno2 battery
Lithium limno2 battery CR14250 3V battery with 800mah capacity and customized terminals
| Type | Disposable battery |
| Material | Li Mno2 battery |
| Voltage | 3.0V |
| Capacity | 800mah |
| Discharge current | 5mA |
| Cut-off voltage | 1.5V |
| Max.continue discharge current | 800mA |
| Max.pluse current | 1500mA |
| Working temperature range | -40~+70 |
| Weight | 9g |
| Jacket | PVC |
| Color | Blue or customized logo |
| Terminals | Pins/Tabs/wires/connector |
| Samples | Free |
| OEM and ODM | Welcome |
Lithium-manganese cylindrical battery CR14250 3V 800mah lithium battery
![]()
More lithium limno2 battery please feel free to contact LUS battery
| Model | Voltage (v) |
Capacity (mAh) |
Current(mA) | Max dimensions (T*w*H) (mm) |
Weight (g) |
|
| Constants | Plus | |||||
| CR14250 | 3.0 | 600 | 500 | 1500 | 14.5x33.5 | 11 |
| CR14335 | 3.0 | 950 | 1000 | 2000 | 14.5x50.5 | 14 |
| CR14505 | 3.0 | 1400 | 1500 | 3000 | 14.5x50.5 | 21 |
| CR123A | 3.0 | 1500 | 1500 | 3000 | 17x34.5 | 20 |
| CR17505 | 3.0 | 2500 | 1500 | 3000 | 17x50.5 | 30 |
| CR17450 | 3.0 | 2200 | 1500 | 3000 | 17x45.5 | 26 |
| CR18505 | 3.0 | 3000 | 2000 | 3000 | 18.5x50.5 | 35 |
| CR26500 | 3.0 | 6000 | 2000 | 3000 | 26.2x50.5 | 62 |
| CR34615 | 3.0 | 12000 | 2000 | 3000 | 34x61.5 | 125 |
![]()
Lithium Primary Batteries Li mno2 3V Key Features
1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy
density of Li/MnO2 battery is up to 370Wh/kg and above.
2. High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)
3. Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes.
On the other hand, Forte also offers a wide range of options for varied needs; we can also
provide the cells with pulse current up to several amperes.
4. Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating
temperature endures from -40℃ to +70℃.
5. Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly
capacity loss of the CR series less than 1% .
6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.
7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test
requirement.
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Non-flammable electrolyte
8. Green Energy
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of
the wastes are naturally degradable and no long-term pollution to environment.
Lithium Manganese batteires 3V APPLICATION:
![]()
Cautions in use
To ensure proper use of the battery please read the manual carefully before using it.
Handling
Do not expose to, dispose of the battery in fire.
Do not put the battery in a charger or equipment with wrong terminals connected.
Avoid shorting the battery
Avoid excessive physical shock or vibration.
Do not disassemble or deform the battery.
Do not immerse in water.
Do not use the battery mixed with other different make, type, or model batteries.
Keep out of the reach of children.
Storage
Store the battery in a cool, dry and well-ventilated area.
Disposal
Regulations vary for different countries.
Dispose of in accordance with local regulations.
Note
Any other items which are not covered in this specification shall be agreed by both parties.
![]()
