CR14250 기본 리튬 셀 3v 배터리
PLC lithium battery 3.0 volt 800mah li-mno2 cylindrical battery CR14250 non rechargaeble cell battery custom
LITHIUM BATTERY BAT-CR14250 3 V battery CR14250 lithium battery CR1/2AA lithium primary battery CR14250 Lithium Manganese Dioxide chemistry battery 3.0 volt Industry baattery CR14250-AB Battery CR14250 Lithium 3VDC battery 850mAh CR 14250 SE lithium battery 3.0 V 14250 Battery size 1/2AA not Rechargeable Lithium Battery LS14250 lithium primary battery 14250 1/2AA Batteries for Dog Collars, Security Systems, Medical Devices, Baby Monitors.
Lithium mno2 battery 3V battery CR14250 specification:
Battery type: Lithium disposable battery
Material : Lithium manganese battery
Voltage: 3.0 Vdc
Capacity: 800mah
Max. continue discharge current : 800mA
Pluse current: 1500mA
Battery size: 1/2Aa battery
| Type | Disposable battery |
| Material | Li Mno2 battery |
| Voltage | 3.0V |
| Capacity | 800mah |
| Discharge current | 5mA |
| Cut-off voltage | 1.5V |
| Max.continue discharge current | 800mA |
| Max.pluse current | 1500mA |
| Working temperature range | -40~+70 |
| Weight | 9g |
| Jacket | PVC |
| Color | Blue or customized logo |
| Terminals | Pins/Tabs/wires/connector |
| Samples | Free |
| OEM and ODM | Welcome |
CR14250 battery 3V battey 800mah battery 850mah lithium battery
Lithium Primary Batteries Li mno2 3V Key Features
1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy
density of Li MnO2 battery is up to 370Wh/kg and above.
2. High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)
3. Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes.
On the other hand, Forte also offers a wide range of options for varied needs; we can also
provide the cells with pulse current up to several amperes.
4. Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating
temperature endures from -40℃ to +70℃.
5. Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly
capacity loss of the CR series less than 1% .
6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.
7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test
requirement.
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Non-flammable electrolyte
8. Green Energy
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of
the wastes are naturally degradable and no long-term pollution to environment.
Lithium Manganese batteires 3V APPLICATION:
Utility meters (water, electricity, gas meters and AMR)
Alarm or security equipment (smoke alarm systems and detectors)
GPS tracking
Teal time clocks
Remote monitoring systems
Car electronics
Photo cameras

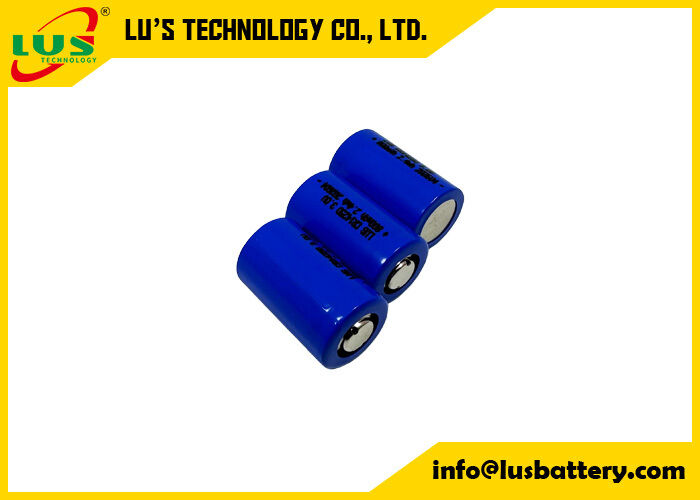

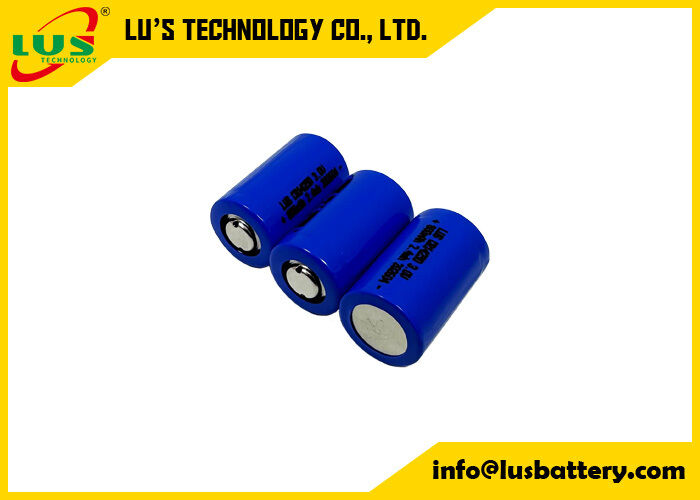

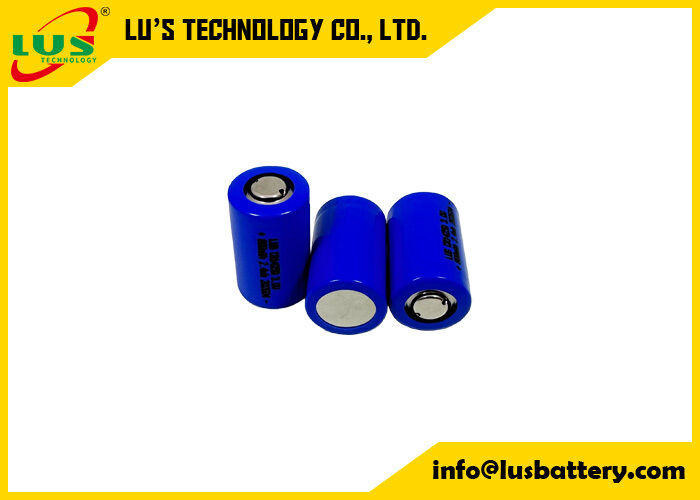

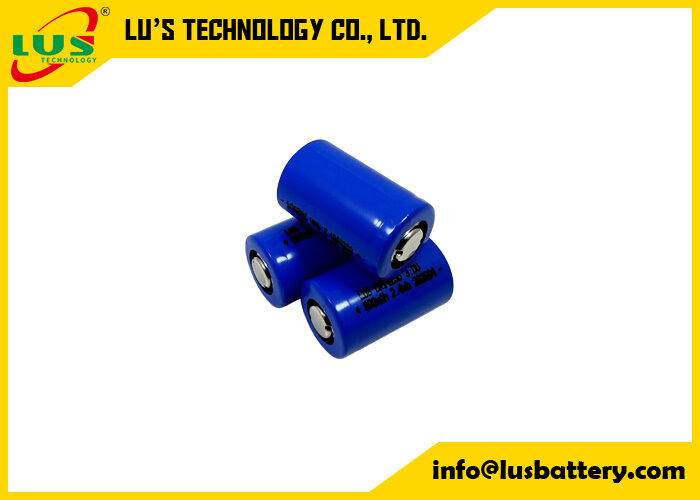

2*CR14250 lithium battery pack Product Picture:
Li-mno2 battery CR14250 / CR14335 / CR14505 / CR123A / CR2 / CR17505 / CR17450 / CR18505 / CR26500 / CR34615 batteries
| Model | Voltage (v) |
Capacity (mAh) |
Current(mA) | Max dimensions (T*w*H) (mm) |
Weight (g) |
|
| Constants | Plus | |||||
| CR14250 | 3.0 | 600 | 500 | 1500 | 14.5x33.5 | 11 |
| CR14335 | 3.0 | 950 | 1000 | 2000 | 14.5x50.5 | 14 |
| CR14505 | 3.0 | 1400 | 1500 | 3000 | 14.5x50.5 | 21 |
| CR123A | 3.0 | 1500 | 1500 | 3000 | 17x34.5 | 20 |
| CR17505 | 3.0 | 2500 | 1500 | 3000 | 17x50.5 | 30 |
| CR17450 | 3.0 | 2200 | 1500 | 3000 | 17x45.5 | 26 |
| CR18505 | 3.0 | 3000 | 2000 | 3000 | 18.5x50.5 | 35 |
| CR26500 | 3.0 | 6000 | 2000 | 3000 | 26.2x50.5 | 62 |
| CR34615 | 3.0 | 12000 | 2000 | 3000 | 34x61.5 | 125 |
